Fitting a 12V generator and electronic ignition
Purchased from MZ-B. If mounted correctly no alien parts can be seen from the outside.

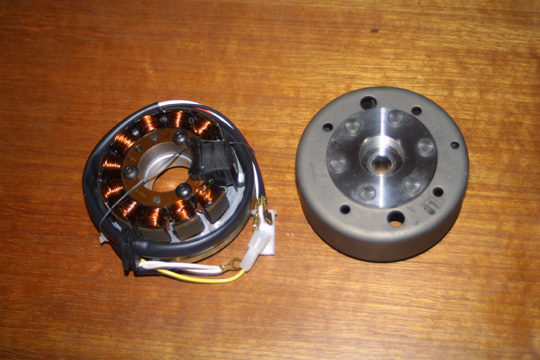

05-02-2004. 12V generator replaces the original 6V.

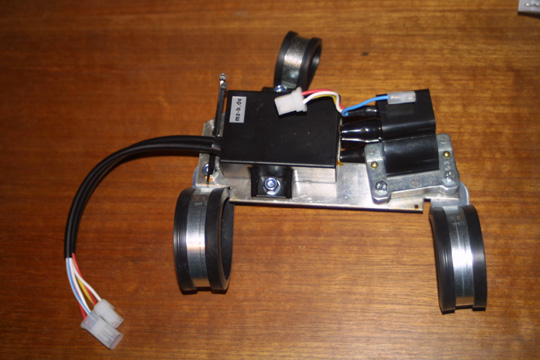

05-02-2004. Electronic ignition. Won't fit like this on my R51/3 (tank is too narrow).

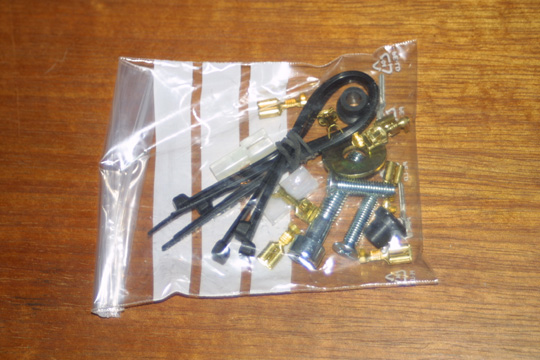

05-02-2004. They thought of almost everything.

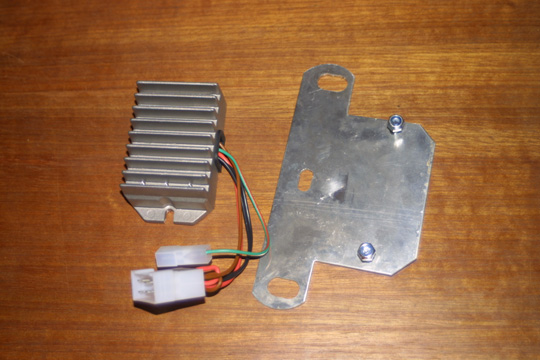

05-02-2004. The regulator, it is supposed to go under the tank. Except, that again it doesn't fit my R51/3.

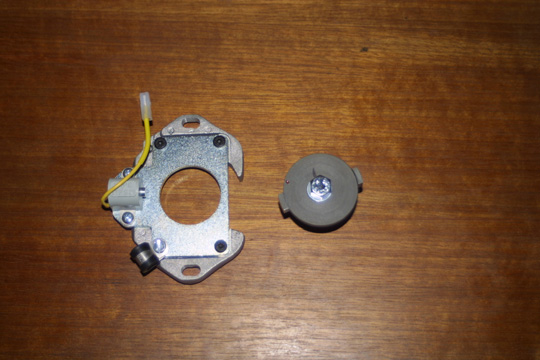

05-02-2004. The pick up for the ignition.

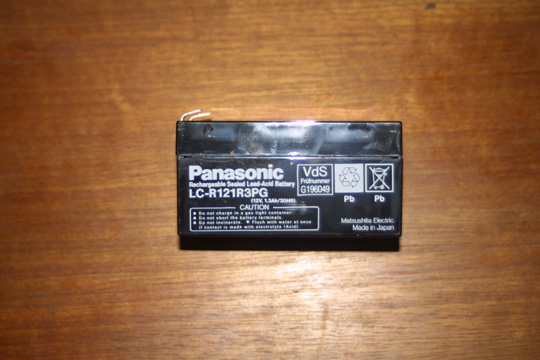

05-02-2004. The new 12 volt battery.

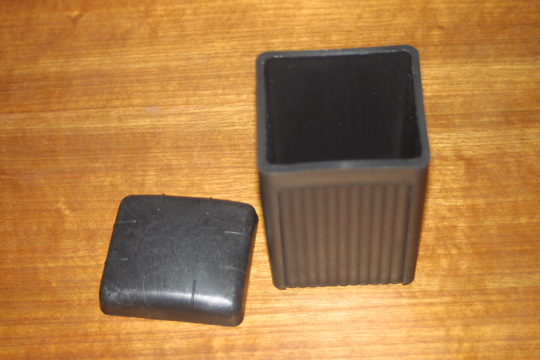

05-02-2004. Empty battery casing. Will fit both the 12 V battery and the regulator. Only hope it won't get too hot.

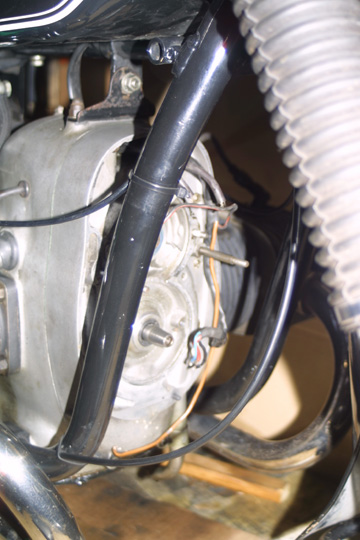

07-02-2004. All old parts removed.
07-02-2004. The old ignition and generator.

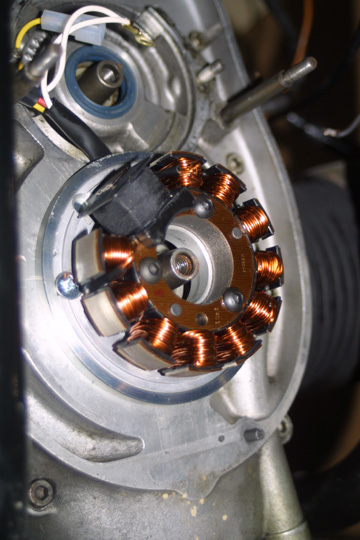

07-02-2004. The new generator fitted without the rotor.

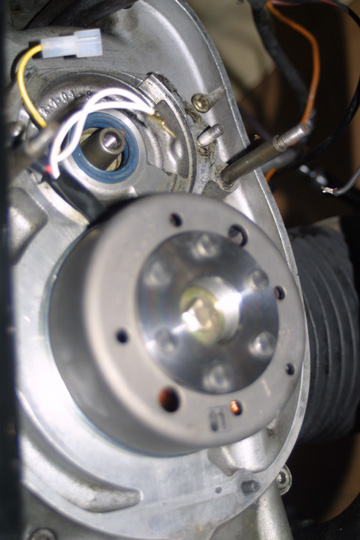

07-02-2004. The new generator complete.

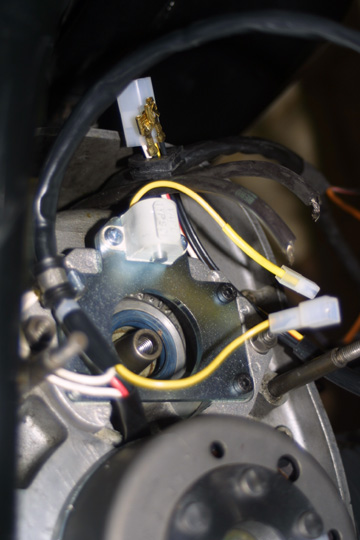

07-02-2004. The ignition pick up mounted.

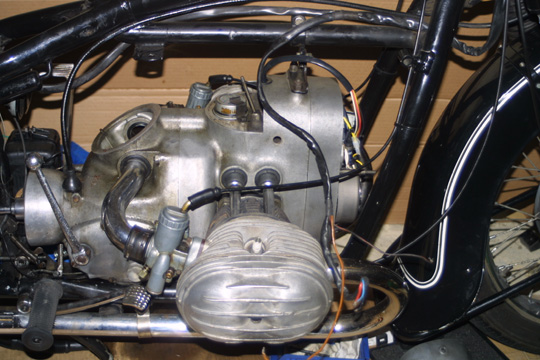

07-02-2004. Ignition and generator mounted.
07-02-2004. Ignition and generator mounted.

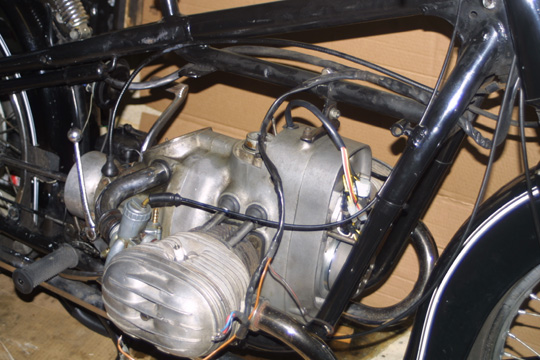

07-02-2004. High tension coil and the 'black box' in place.
